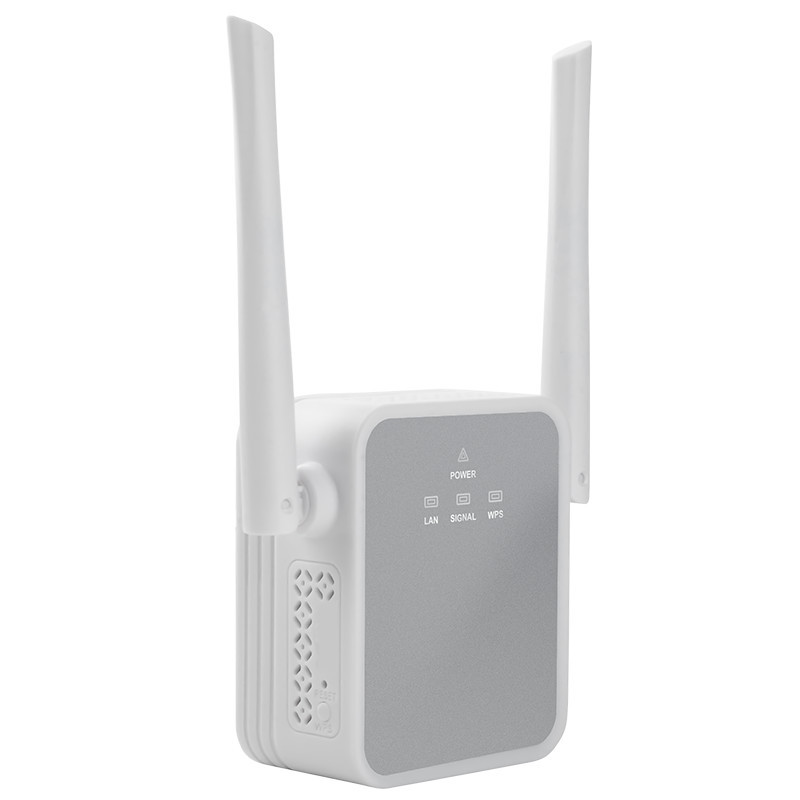

1200mbps Wall Socket Wifi Booster

  • 1200mbps Wall Socket Wifi Booster
  • 1200mbps Wall Socket Wifi Booster
  • 1200mbps Wall Socket Wifi Booster
  • 1200mbps Wall Socket Wifi Booster
  • 1200mbps Wall Socket Wifi Booster
  • 1200mbps Wall Socket Wifi Booster
Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Model Number TS720W
Minimum Order Quantity 50
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 2.4GHz,5.8GHz Wi-Fi Transmission Standard 802.11n Wifi4
Type Wall-plug Interface LAN
LED (Power,SYS Reuse),SIGNAL Extend Speed 1200mbps
Memory 8MB Color White
High Light

1200mbps Wall Socket Wifi Booster

,

LAN Wall Socket Wifi Booster

,

5.8GHz home wifi extender
Product Description

TUOUSHI Network WiFi Expander Signal Booster Repeater With 1200mbps Extender

1. extending wifi signal to every corner of indoor

2. strong wall pnetration:dual external antennas make signal more stronger
3. external dual omnidirectional antenna,wide expansion:with omnidirectional gain antenna,the wirelss rate

peaks up to 1200Mbps,external dual antenna,rotable design,strong signal and wide coverage."

Chipset
MT7628A+MT7612E
Main frequency and processing speed
580MHZ
Memory(Byte)
64M-Byte DDR2
FLASH(Byte)
8M- Byte (SPI flash)
Standards and protocols supported
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP
Port
WAN/LAN
1*LAN(Hundred trillion)
Button
1*Reset
1*WPS
wireless
Frequency range / deviation
2.412GHz~2.4835GHz / 5.180GHz~5.825GHz

parameter
transmission 1200speed
802.11b : 1/2/5.5/11Mbps(Max)
802.11g : 6/9/12/18/24/36/48/54Mbps(Max)
802.11n (HT20): 150Mbps(Max)
802.11n (HT40): 300Mbps(Max)
802.11a: 6/9/12/18/24/36/48/54 Mbps(Max)
802.11AC (VHT80): 900Mbps(Max)
Transmitting power
EVM
2.4G:
802.11b:18dBm+/-1 dBm
802.11g:17dBm +/-1dBm EVM< -25 dBm
802.11n:17Bm +/-1dBm EVM< -28 dBm
5.8G:
802.11a:16dBm+/-1 dBm
802.11n:15dBm +/-1dBm EVM< -30 dBm
802.11ac:14Bm +/-1dBm EVM< -32 dBm
Spread spectrum technology
DSSS(Direct sequence spread)
Data modulation
DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM/256-QAM)
@PER
Sensitivity @ PER
(error rate)
11b 1Mbps: -95dBm@10%PER 11g 54Mbps: -75dBm@%10 PER 11n HT20 150Mbps: -72dBm@%10PER
11n HT40 300Mbps: -70dBm@%10 PER
11ac VHT80 866Mbps: -56dBm@%10 PER
power
≤5W
power supply
AC220V
LED
PWR,LAN,Signal,WPS
Indication
LAN
Support
Boundary dimension
(L×W×H)(mm)
95x120x60mm





1200mbps Wall Socket Wifi Booster 01200mbps Wall Socket Wifi Booster 11200mbps Wall Socket Wifi Booster 21200mbps Wall Socket Wifi Booster 31200mbps Wall Socket Wifi Booster 4
