ROHS Wall Plug WiFi Extender 1200mbps Dual Band Wifi Repeater
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 2.4GHz, 5.8GHz | Wi-Fi Transmission Standard | 802.11n Wifi4 |
|---|---|---|---|
| Type | Wall-plug | Interface | LAN |
| LED | (Power,SYS Reuse),SIGNAL | Extend Speed | 1200mbps |
| Memory | 8MB | Color | White |
| High Light | 5.8GHz Wall Plug WiFi Extender,ROHS Wall Plug WiFi Extender,1200mbps Dual Band Wifi Repeater |
||
Product Description

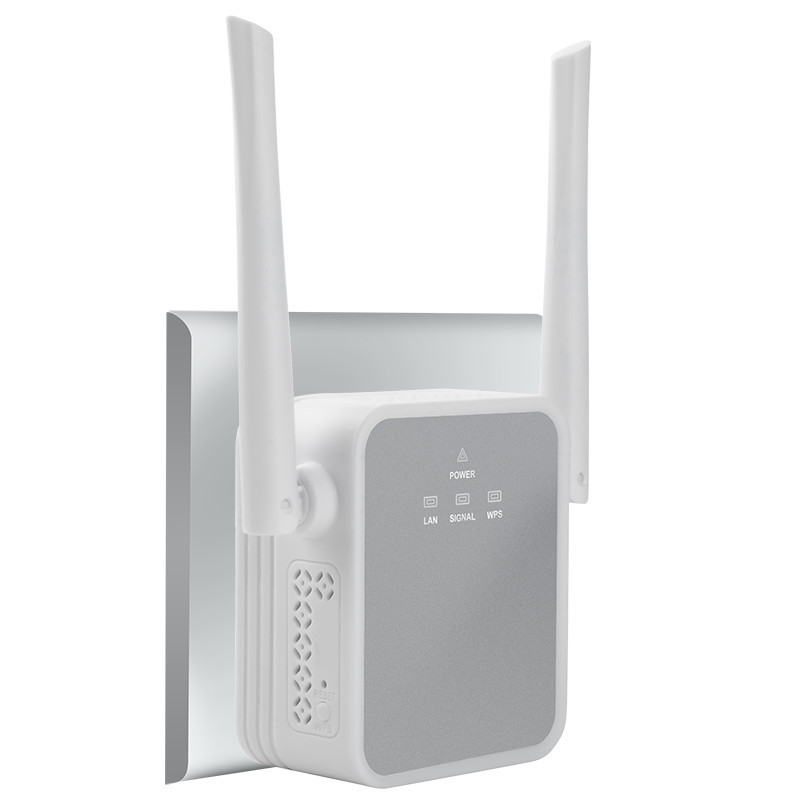

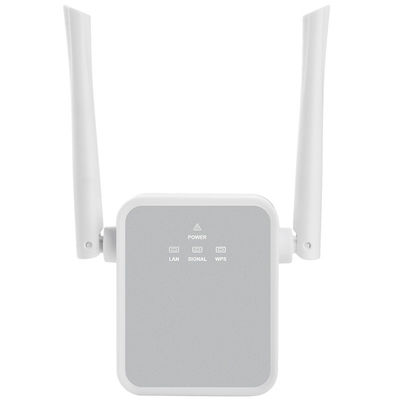

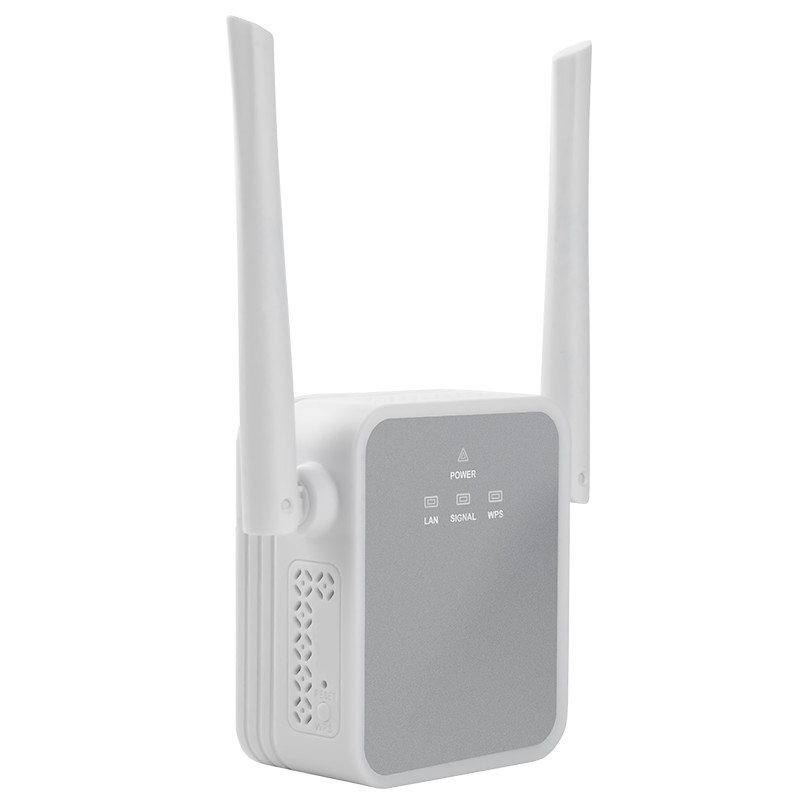

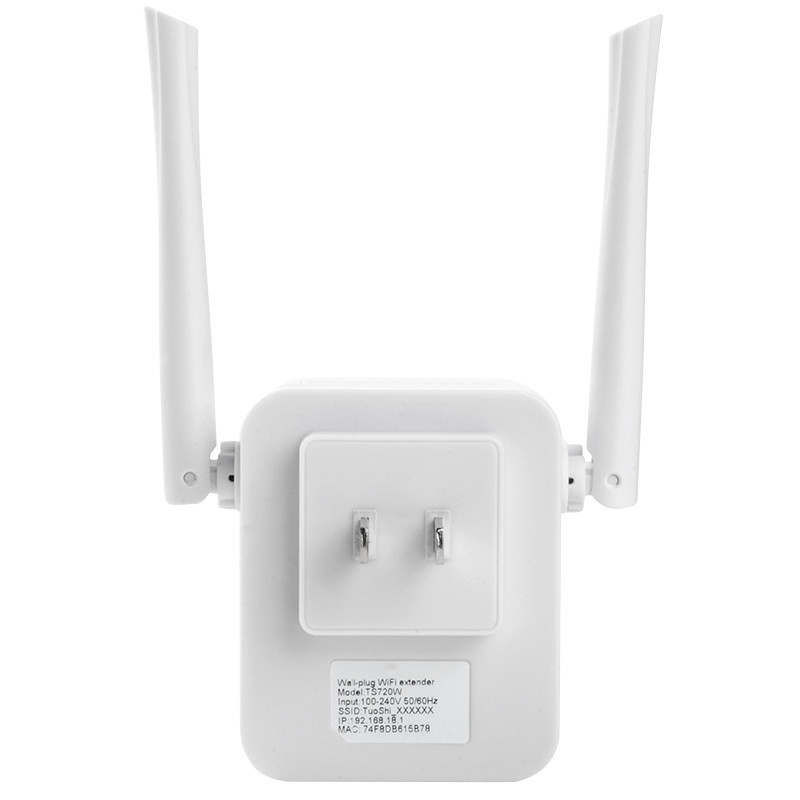

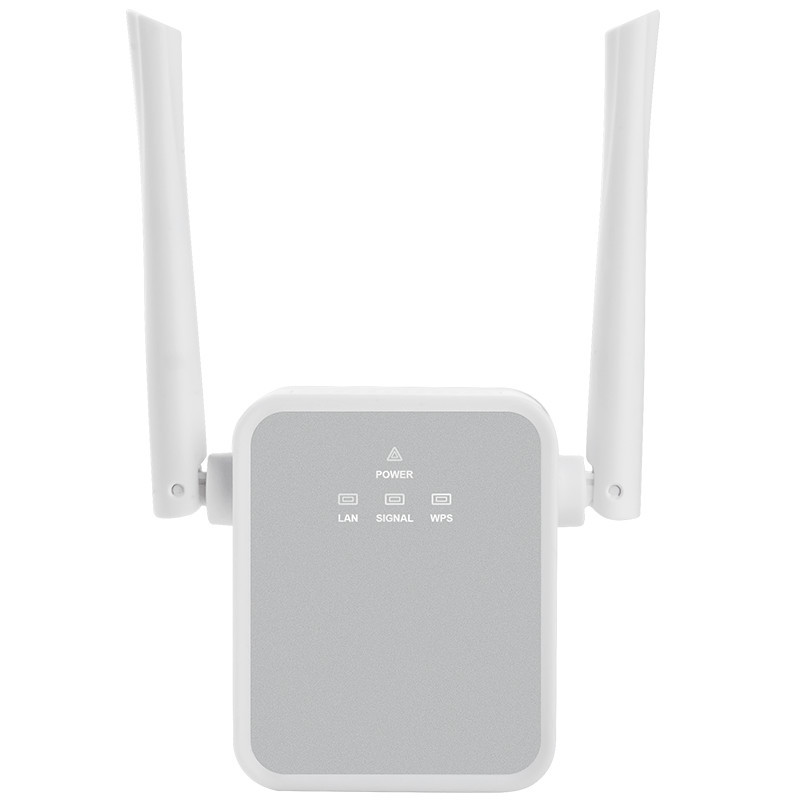

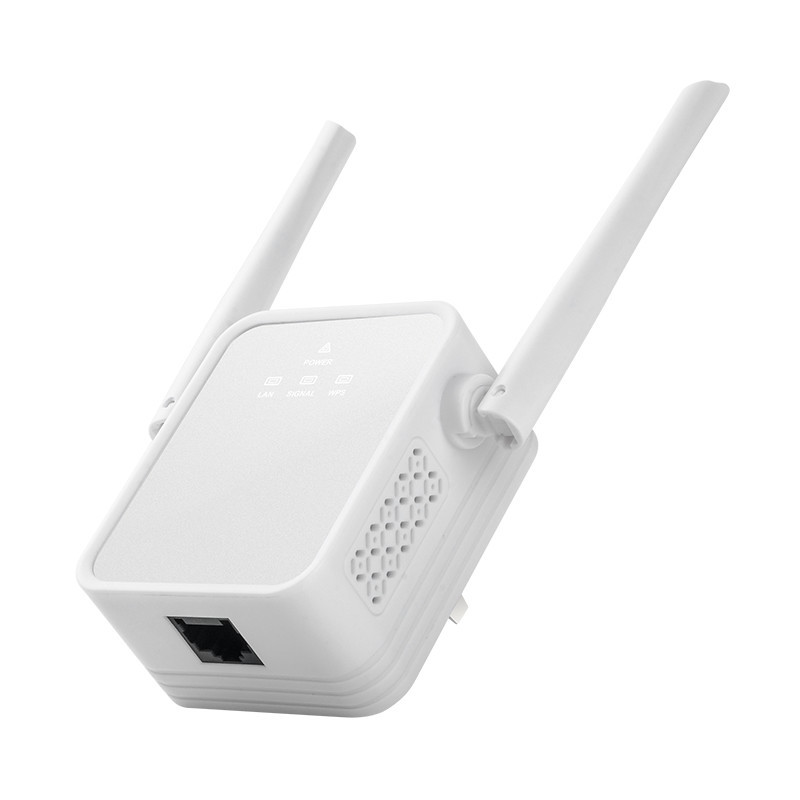

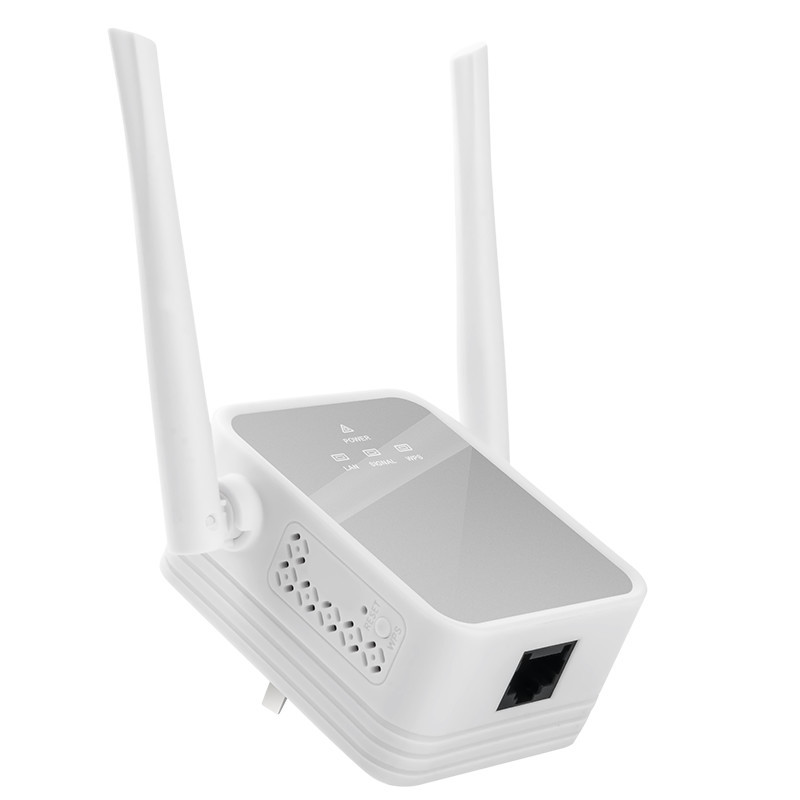

TUOSHI 1200mbps Dual Band Network WiFi Repeater With 2 External Antenna
1. This repeater is extending wifi signal to every corner of indoor
2. Strong wall pnetration:dual external antennas make signal more stronger
3. External dual omnidirectional antenna,wide expansion:with omnidirectional gain antenna,the wirelss rate
peaks up to 1200Mbps,external dual antenna,rotable design,strong signal and wide coverage."
|
Chipset
|
MT7628A+MT7612E
|
|
|
Main frequency and processing speed
|
580MHZ
|
|
|
Memory(Byte)
|
64M-Byte DDR2
|
|
|
FLASH(Byte)
|
8M- Byte (SPI flash)
|
|
|
Standards and protocols supported
|
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP
|
|
|
Port
|
WAN/LAN
|
1*LAN(Hundred trillion)
|
|
Button
|
1*Reset
1*WPS |
|
|
wireless
|
Frequency range / deviation
|
2.412GHz~2.4835GHz / 5.180GHz~5.825GHz
|
|
parameter |
transmission 1200speed
|
802.11b : 1/2/5.5/11Mbps(Max)
802.11g : 6/9/12/18/24/36/48/54Mbps(Max) 802.11n (HT20): 150Mbps(Max) 802.11n (HT40): 300Mbps(Max) 802.11a: 6/9/12/18/24/36/48/54 Mbps(Max) 802.11AC (VHT80): 900Mbps(Max) |
|
Transmitting power
EVM |
2.4G:
802.11b:18dBm+/-1 dBm 802.11g:17dBm +/-1dBm EVM< -25 dBm 802.11n:17Bm +/-1dBm EVM< -28 dBm 5.8G: 802.11a:16dBm+/-1 dBm 802.11n:15dBm +/-1dBm EVM< -30 dBm 802.11ac:14Bm +/-1dBm EVM< -32 dBm |
|
|
Spread spectrum technology
|
DSSS(Direct sequence spread)
|
|
|
Data modulation
|
DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM/256-QAM)
|
|
|
@PER
Sensitivity @ PER (error rate) |
11b 1Mbps: -95dBm@10%PER 11g 54Mbps: -75dBm@%10 PER 11n HT20 150Mbps: -72dBm@%10PER
11n HT40 300Mbps: -70dBm@%10 PER 11ac VHT80 866Mbps: -56dBm@%10 PER |
|
|
power
|
≤5W
|
|
|
power supply
|
AC220V
|
|
|
LED
|
PWR,LAN,Signal,WPS
|
|
|
Indication
|
LAN
|
Support
|
|
Boundary dimension
(L×W×H)(mm) |
95x120x60mm
|
|
