130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass

  • 130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass
  • 130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass
  • 130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass
  • 130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass
Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Minimum Order Quantity 1
Price contact seller
Delivery Time 5days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 902-928MHz Impedance 50Ω
Max. Efficiency >80% Polarization Linear Polarization/Vertical
Connector N-J Radiation Pattern Omni-directional
Antenna VSWR <2.0 Antenna Gain 8dBi±1.0dBi
Antenna Length 130cm
High Light

130CM Omni Directional Outdoor Antenna

,

LoRa Fiberglass Omni Directional Outdoor Antenna

,

868mhz LoRa Fiberglass Antenna
Product Description

Factory LoRa Outdoor Indoor 8dBi Omnidirectional Antenna for HNT Helium Hotspot Miner





  • 【Frequency range and gain】 902MHz-928MHz(915MHz) / 8dBi. N-male/50Ω/≤1.8, standing wave ratio≤1.6
  • 【Industrial-grade structure】 High-quality structure and durable glass fiber finish make it more suitable for all-weather operation. Built-in pure copper oscillator for high-performance ultra-long-distance signal transmission.
  • 【Cable connector, type and length】 N-Female to SMA-Male / low loss RG58 /60 cm (39.37in)
  • 【Scope of application】Designed specifically for LoRa IoT applications. Antennas are allowed to be installed indoors/outdoors; compatible with RAK ​​Bobcat HNT Hotspot Miner, etc.

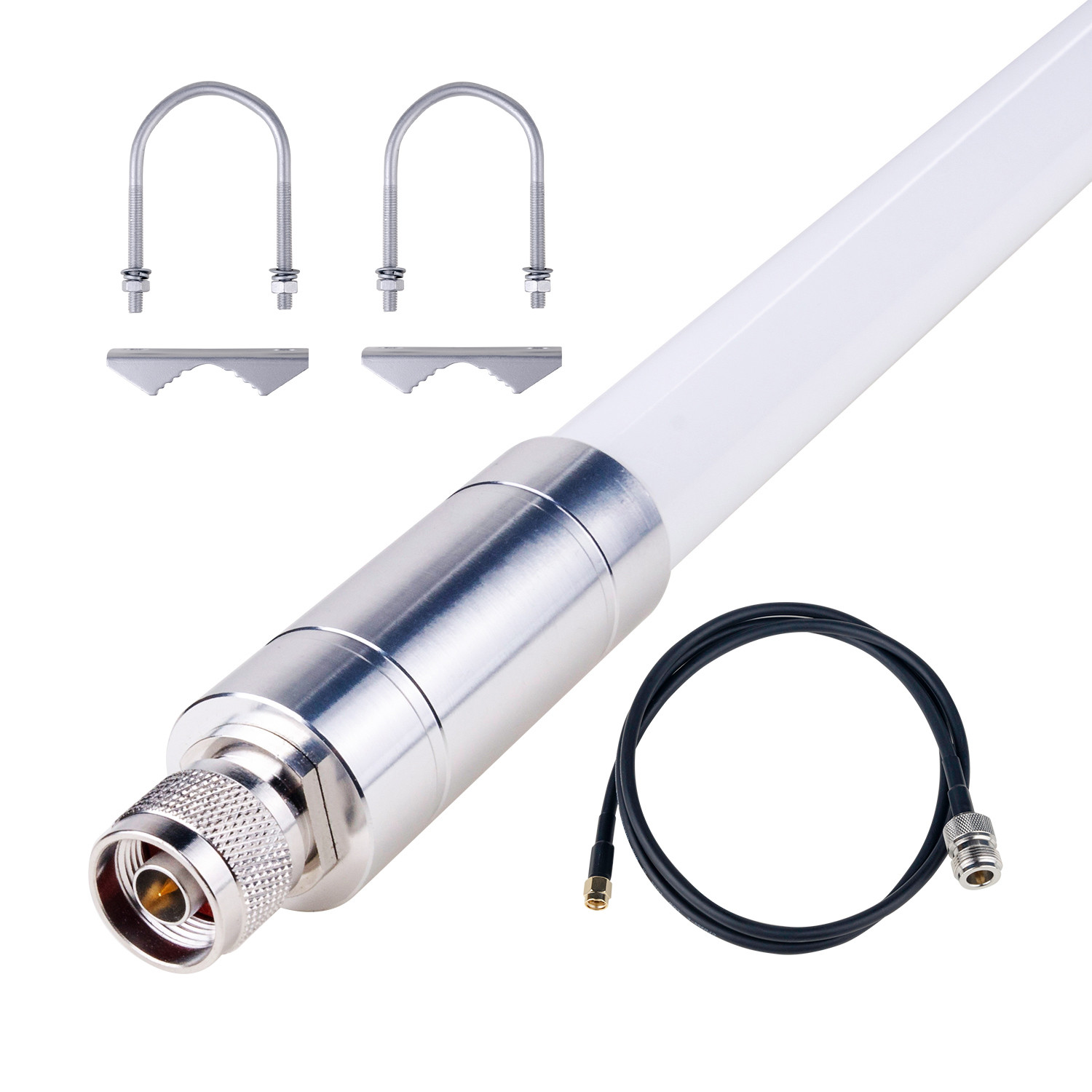

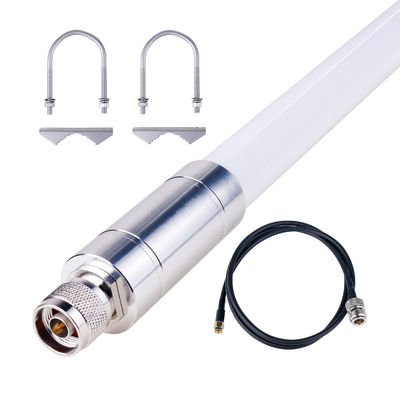

  • 【Packing List】Fiberglass antenna with bracket, 60cm RG58 cable and SMA adapter (SMA female to RP-SMA male)





Frequency 902-928MHz
Bandwidth /
Impedance 50Ω
VSWR ＜2.0
Gain 8dBi±1.0dBi
Max. Efficiency >80%
Polarization Linear polarization/Vertical
Radiation pattern Omni-directional
Connector N-J
Mechanical Parameter:
Length 1300±20mm
Salt Spray Test 48H
Environment Parameter:
Operation Temperature -30℃~65℃
Storage Temperature -30℃~75℃



130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass 0

130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass 1130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass 2130CM 868mhz Omni Directional Outdoor Antenna Hotspot LoRa Fiberglass 3
