1200Mbps Wall Plug WiFi Extender RJ45 Port 4G Mobile Signal Booster
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 2.4GHz,5.8GHz | Wi-Fi Transmission Standard | 802.11n Wifi4 |
|---|---|---|---|
| Type | Wall-plug | Interface | LAN |
| LED | (Power,SYS Reuse),SIGNAL | Extend Speed | 1200mbps |
| Memory | 8MB | Color | White |
| Highlight | 1200Mbps Wall Plug WiFi Extender,white Wall Plug WiFi Extender,RJ45 4g Mobile Signal Booster |
||
Product Description

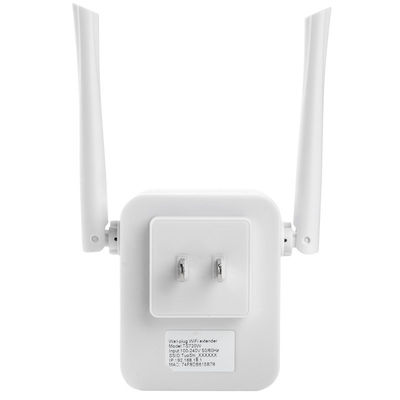

TUOUSHI Network 1200 Mbps WiFi Repeater Expander Signal Booster With RJ45 Port
1. extending wifi signal to every corner of indoor
2. strong wall pnetration:dual external antennas make signal more stronger
3. external dual omnidirectional antenna,wide expansion:with omnidirectional gain antenna,the wirelss rate
peaks up to 1200Mbps,external dual antenna,rotable design,strong signal and wide coverage."
4. plug and use, help you extender the wifi signal, enjoy the wifi signal widely cover
|
Chipset
|
MT7628A+MT7612E
|
|
|
Main frequency and processing speed
|
580MHZ
|
|
|
Memory(Byte)
|
64M-Byte DDR2
|
|
|
FLASH(Byte)
|
8M- Byte (SPI flash)
|
|
|
Standards and protocols supported
|
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP
|
|
|
Port
|
WAN/LAN
|
1*LAN(Hundred trillion)
|
|
Button
|
1*Reset
1*WPS |
|
|
wireless
|
Frequency range / deviation
|
2.412GHz~2.4835GHz / 5.180GHz~5.825GHz
|
|
parameter |
transmission 1200speed
|
802.11b : 1/2/5.5/11Mbps(Max)
802.11g : 6/9/12/18/24/36/48/54Mbps(Max) 802.11n (HT20): 150Mbps(Max) 802.11n (HT40): 300Mbps(Max) 802.11a: 6/9/12/18/24/36/48/54 Mbps(Max) 802.11AC (VHT80): 900Mbps(Max) |
|
Transmitting power
EVM |
2.4G:
802.11b:18dBm+/-1 dBm 802.11g:17dBm +/-1dBm EVM< -25 dBm 802.11n:17Bm +/-1dBm EVM< -28 dBm 5.8G: 802.11a:16dBm+/-1 dBm 802.11n:15dBm +/-1dBm EVM< -30 dBm 802.11ac:14Bm +/-1dBm EVM< -32 dBm |
|
|
Spread spectrum technology
|
DSSS(Direct sequence spread)
|
|
|
Data modulation
|
DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM/256-QAM)
|
|
|
@PER
Sensitivity @ PER (error rate) |
11b 1Mbps: -95dBm@10%PER 11g 54Mbps: -75dBm@%10 PER 11n HT20 150Mbps: -72dBm@%10PER
11n HT40 300Mbps: -70dBm@%10 PER 11ac VHT80 866Mbps: -56dBm@%10 PER |
|
|
power
|
≤5W
|
|
|
power supply
|
AC220V
|
|
|
LED
|
PWR,LAN,Signal,WPS
|
|
|
Indication
|
LAN
|
Support
|
|
Boundary dimension
(L×W×H)(mm) |
95x120x60mm
|
|
