R658U WiFi Router 2 External Antenna Wireless Router USB Port

Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Model Number AX18
Minimum Order Quantity 50
Price to be negotiated
Delivery Time to be negotiated
Payment Terms L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability 10000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White Antenna 5dBix2 Omni Antenna
Function FireWall, QoS WiFi Transmission 802.11n
Certification FCC,CE,RoHs Interface 4Lan Port/1 Wan Port
Speed 300mbps Wired Transfer Rate 10/100Mbps
High Light

R658U WiFi 6 Gigabit Router

,

R658U white WiFi 6 Gigabit Router

,

R658U 300Mbps Wireless Router Usb Port

Product Description
Tuoshi R658U 300Mbps Wireless Wifi Router USB Port With 2*5dbi External Antenna
1. This router has 2 external antennas,4 lan ports and 1 wan port, support 32 devices at the same time.300Mbps wifi
transmission,no trouble of access internet for business,home,store,monitoring,ect.
2. 5dbi high gain omnidirectional antennas stable wireless signal
3. usb interface, it can support to connect with N519D outdoor antenna, combination to set up wifi and antenna information
in the backstage, easy to have the wifi signal
Hardware
Chipset MT7620N
RAM DDR2 64MB
SPI FLASH 8MB
Wireless standards IEEE 802.11n,IEEE 802.11g,IEEE 802.11b
Transmission Power

802.11b 18dBm±2dBm;

802.11g 15dBm±2dBm;

802.11n 15dBm±2dBm;

Reception Sensitivity



802.11b: -90dBm@10% PER

802.11g: -74dBm@10% PER

802.11n: -68dBm@10% PER

Channel 1-13
Transmission Rate 300Mbps
Frequency Range 2.4GHz
Antenna

2*5dBi

high gain omni-directional antenna

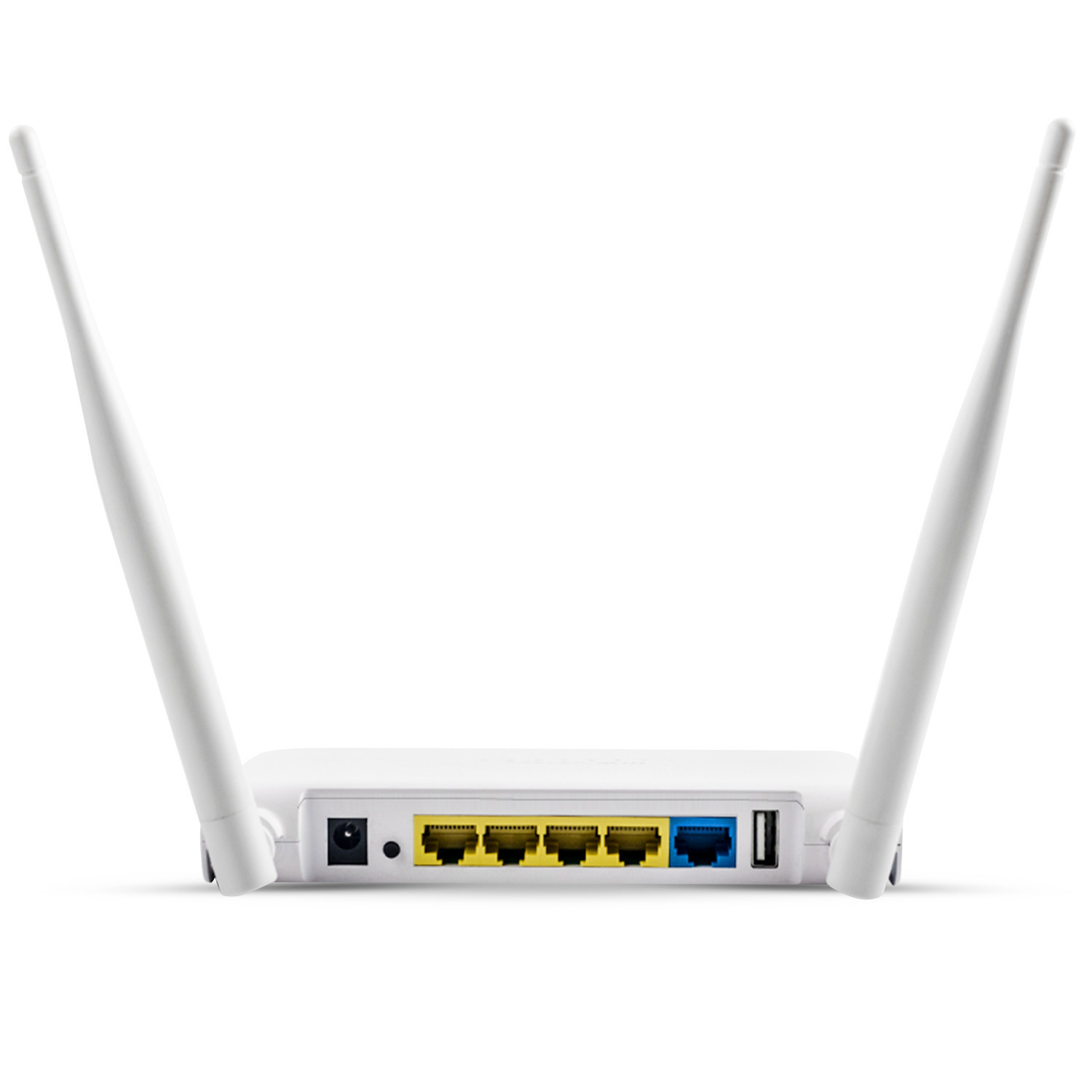

Interface

1*USB 2.0

1*DC 12V

1*10/100M adaptive WAN Port

4*10/100M adaptive LAN Port

LED Power,USB,WIFI,WAN,LAN1,LAN2,LAN3,LAN4
Button Reset
Power Dissipation <12W
Software
WAN access PPPoE, Dynamic IP, Static IP
Firewall,QoS Support
DHCP Server

DHCP Server

Clients list

Security Setting MAC Filter
WEB Manage
DDNS Support
Bandwidth Control Support
Other Functions Remote update
File import and export
WiFi USB Card Supported

Ralink 3070/3072

Realtek 8188RU

R658U WiFi Router 2 External Antenna Wireless Router USB Port 0R658U WiFi Router 2 External Antenna Wireless Router USB Port 1R658U WiFi Router 2 External Antenna Wireless Router USB Port 2R658U WiFi Router 2 External Antenna Wireless Router USB Port 3R658U WiFi Router 2 External Antenna Wireless Router USB Port 4
