ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router

Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Model Number LT21M
Minimum Order Quantity 50
Price to be negotiated
Delivery Time to be negotiated
Payment Terms D/A, D/P, L/C, T/T, Western Union, MoneyGram,Pay pal
Supply Ability 10000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Network 4G/3G/2G Material METAL Shell
Interface Rj45, 4 LAN, 1 WAN, 1 SIM Card Slot Antenna 6* 5dBi Antennas
Support 32 Wireless Users Application IoT, M2M, Industry, Vending Machine, Bus Wifi, ATM
High Light

1200Mbps 4G Wireless Router

,

CPE Industrial 4G Wireless Router

,

SMA Connector 4G LTE Industrial Router

Product Description

ATM Metal Cover 1200Mbps SMA Connector removable Antenna wifi Wireless CPE Industrial Sim card 3g 4g 5g Router

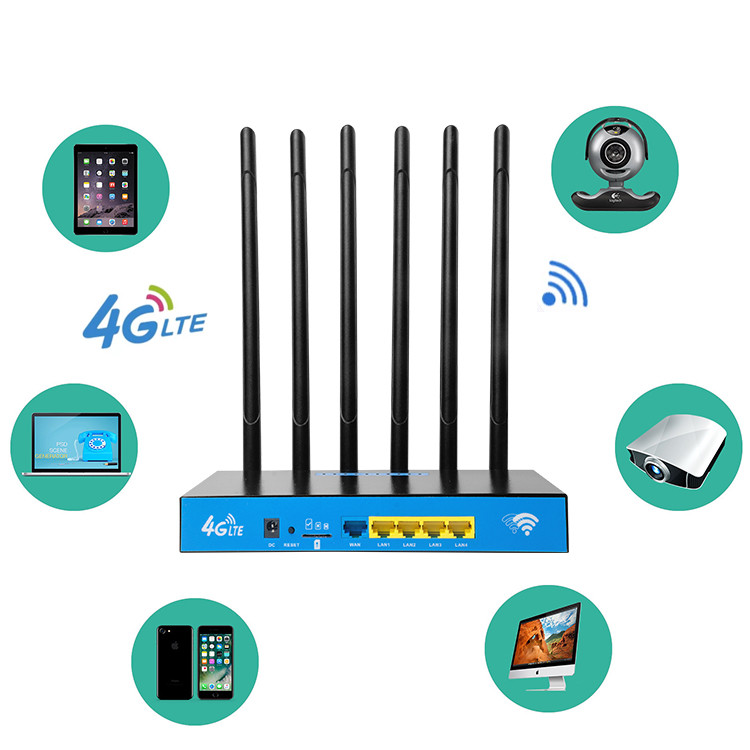

This device is a high-performance 4G broadband wireless router,

Please use normal size Sim card to plug in the router, the micro Sim card size also can be used by a sim card adapter, and router doesn't

include SIM card , user need to buy a SIM card from local operators .


We support customize logo, package,   please chat with us!



The router support 32 user .

Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal startup caused by software.

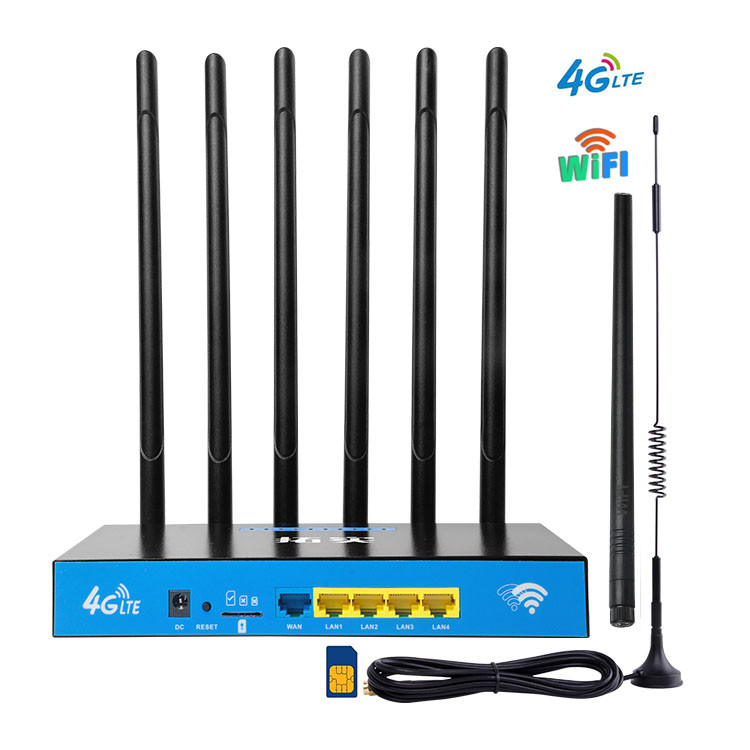

High Gain Antennas with 6 x 5dBi ,  can be rotated freely and removable to connect other Antenna to get more strong singnal,

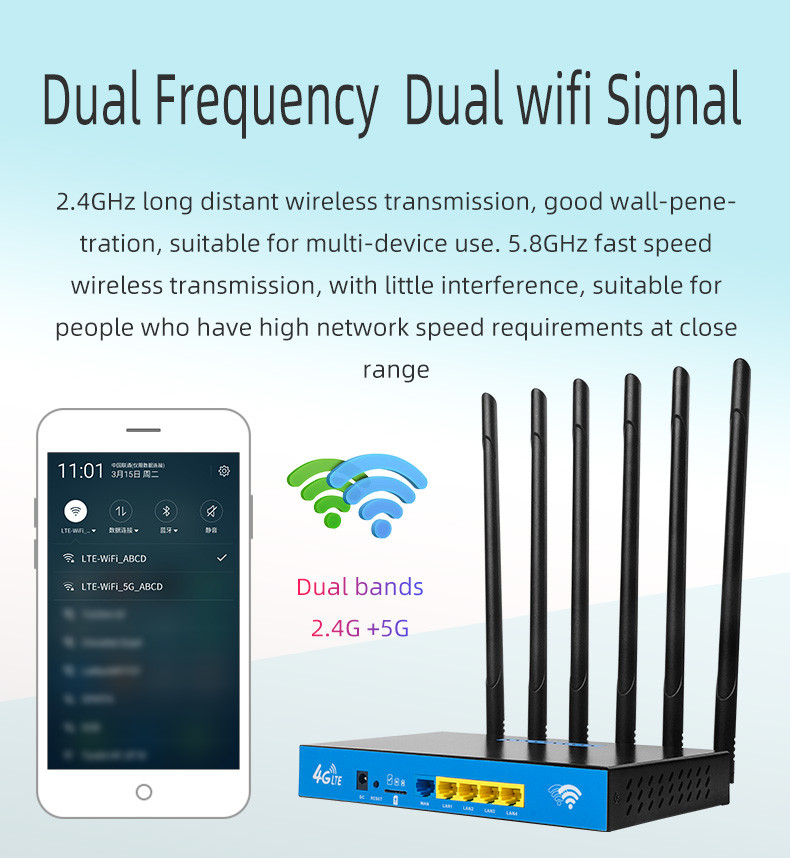

Dual frequency with 2.4g and 5.8G, totally speed to 1200mbps

With a variety of working modes (4G to WiFi / 4G to cable), rich network protocols and reliable connections

Application: IoT, M2M, Industry, Vending Machine, Bus wifi, ATM

ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 0



Interface
Network
4*lan 1*wan
SIM
2FF sim
Button
reset
DC adapter
Input voltage:12V 1.5A
Solution
Routing and WiFi chipset supplier
MTK
BASE
Routing and WiFi chipset model
MT7628A+MT7612E
Routing and WiFi processor info
IEEE 802.11 a/b/g/n/ac
DDR/SPI
64MBytes/16MBytes
RF
Main antenna
Internal antenna
Receive diversity antenna
Internal antenna
WiFi band
2400MHz-2483.5MHz 5170MHz-5835MHz
MIMO for WiFi
2.4G 5dbi X 2 5G 5dbi X 2
Max. transmitter power for WiFi
802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm;
802.11g 18dBm±2dBm;
802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm;
Software
Language
Chinese&English
APN Setting
Supported
Device Settings
Supported
WIFI Settings
Supported
Routing Settings
Supported
Firewall Settings
Supported
Technical standard
LED
Supported
WiFi standard
802.11b/g/n(2*2 11n features)
WiFi security
WPA/WPA2
OS
Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux
Browser
IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later)
Envionment
Operating temperature
0 to 50° C
Storage temperature
-40 to 70° C
Humidity
5% to 95%



Support different operator on line,

Version 1: work on America&Latin America countries
LTE FDD: B2/B3/B4/B5/B7/B8/B12/B13/B17/B25/B26/B66
LTE TDD: B41
WCDMA: B2/B4/B5/B8
GSM: 850/900/1800/1900

Version 2: Europe Version
LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: /B38/B40/B41
WCDMA: B1/B8
GSM: 900/1800

Version3: Asia & Africa version
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA2000 1X/EVDO: BC0
GSM: 900/1800





ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 1ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 2

ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 3

ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 4

ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 5ATM Metal Cover 1200Mbps SMA Connector Removable Antenna Wifi Wireless CPE Industrial Sim Card 3g 4g 5g Router 6
