ATT T Mobile B2 B3 B4 B66 B41 3G 4G LTE Wifi Sim Router CPE SMA Antenna Industrial
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chipset | MT7628N | User | 32 Users |
|---|---|---|---|
| Antenna | 2 External Antenna, SMA Antenna Connector | Frequency | 2.4GHz 300mbps |
| Standard | 802b/g/n | Interface | 2 LAN Port |
| Support | Band Lock / IMEI TTL Change/Mounted Ear | ||
| Highlight | 3G 4G LTE Wifi Sim Router,CPE SMA Antenna Wifi Sim Router,SMA Antenna 4G LTE Industrial Router |
||
Product Description
AT&T T-Mobile B2 B3 B4 B5 B7 B8 B12 B13 B17 B25 B26 B66 B41 America Industrial CPE SMA antenna 3G 4G LTE Wifi Sim Router
Industrial GRADE, dual fireware, bandk lock, firewall, watchdog.

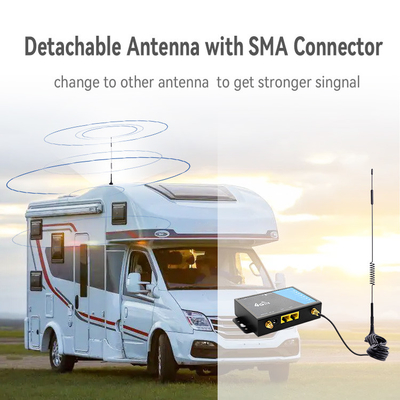

With SMA Connector, support to change high gain external antenna to get stronger signal
Supports UPnP, Dynamic DNS, Static Routing, VPN L2TP. Suppots WIFI, Compatible with 802.11b/g/n.
Support 32 user terminals No lag, no disconnection Using professional wireless processor,Supports up to 32 user terminal equipment connections, no freezes, no disconnection,Can be applied to monitoring network, smart device application and other fields
|

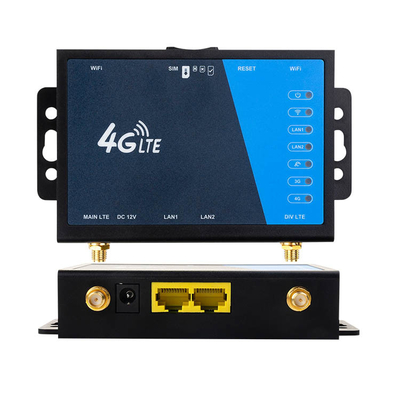

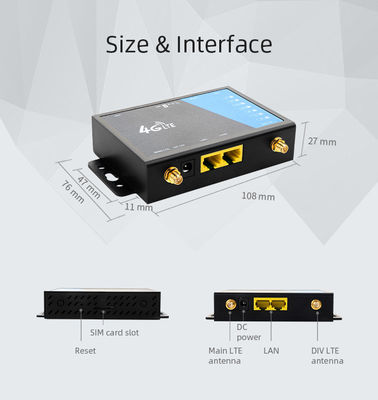

interface
|
Network
|
2* LAN
|
|
SIM
|
2FF SIM
|
|
|
Button
|
Reset
|
|
|
DC Adapter
|
Input voltage: 12V, 1A
|
|
|
Base
|
Routing & wifi chipset model
|
MT7628N
|
|
Routing & wifi processor info
|
IEEE 802.11 b/g/n
|
|
|
DDR/SPI
|
64MBytes/16MBytes
|
|
|
RF
|
Main antenna
|
Internal antenna
|
|
Receive diversity antenna
|
Internal antenna
|
|
|
WiFi band
|
2400MHz-2483.5MHz
|
|
|
MIMO for WiFi
|
2dbi X 2
|
|
|
Max. transmitter power for WiFi
|
802.11b 24dBm±2dBm;
802.11g 16dBm±2dBm; 802.11n 15dBm±2dBm; |
|
|
Technical Standard
|
LED Indicator
|
Supported
|
|
WiFi standard
|
802.11b/g/n(2*2 11n features)
|
|
|
WiFi security
|
WPA/WPA2
|
|
|
OS
|
Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux
|
|
|
Browser
|
IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later)
|
Please check which version can work on your country before buying.
Version 1: work on America&Latin America countries(AT&T,T-Mobile,Verizon,Sprint and any operator)
LTE FDD: B2/B3/B4/B5/B7/B8/B12/B13/B17/B25/B26/B66 LTE TDD: B41
WCDMA: B2/B4/B5/B8 GSM: 850/900/1800/1900
Version 2: Europe Version
LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: /B38/B40/B41
WCDMA: B1/B8 GSM: 900/1800
Version3: Asia & Africa version
LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8 TD-SCDMA: B34/B39
CDMA2000 1X/EVDO: BC0 GSM: 900/1800
