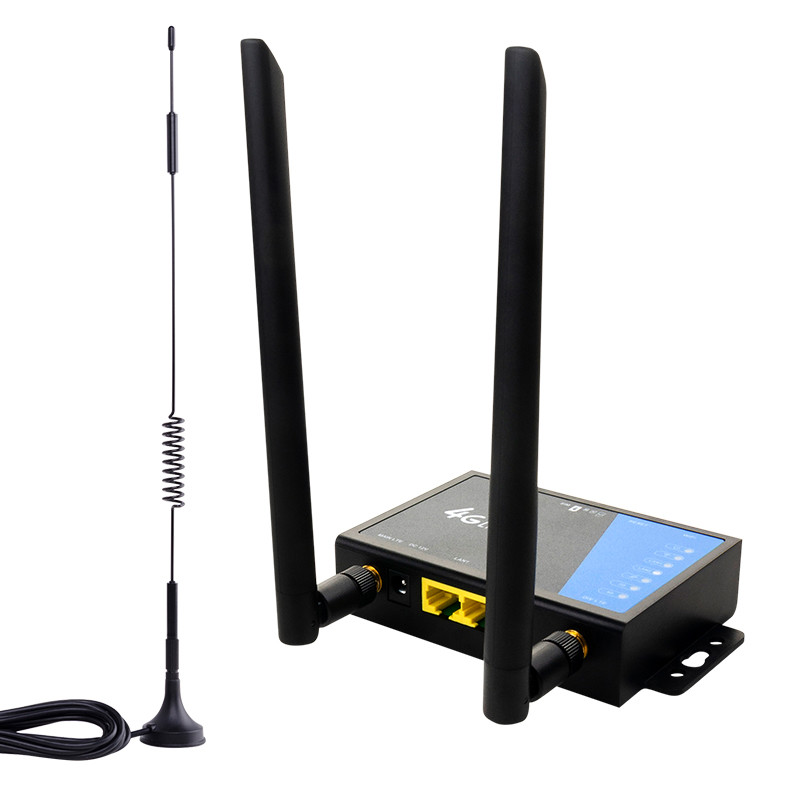

802.11b/G/N Cellular 4G LTE Industrial WiFi Router 300Mbps

Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Model Number LT22M
Minimum Order Quantity 50
Price to be negotiated
Delivery Time to be negotiated
Payment Terms L/C, T/T, Western Union, D/P, D/A, MoneyGram
Supply Ability 10000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chipset MTK User 32 Users, LAN Ethernet To PC/camera
Antenna 2 External Antenna, SMA Antenna Connector Materia Plastic Housing
Frequency 2.4GHz 300mbps Standard 802b/g/n
Interface 2 LAN Port Wifi Rate DL 150mbps, UL 50Mbps
Support Customized Logo, Package Box, Firmware Ect Company Factory
High Light

802.11b/g/n Industrial WiFi Router

,

Industrial WiFi Router 300Mbps

,

Industrial Cellular LTE Router

Product Description

Factory Industrial Wifi Router 4g Mobile Router Wifi Chipset 802.11b/G/N Cellular Lte Router





Its download speed is up to 150mbps, upload speed is up to 50mbps, and wireless transmission speed is 300mbps.

The WiFi Chipset is MT7628N, 802.11 b/g/n , 300Mbps;The LTE Chipset is CAT4 ( can be do CAT6 ) , 150Mbps.

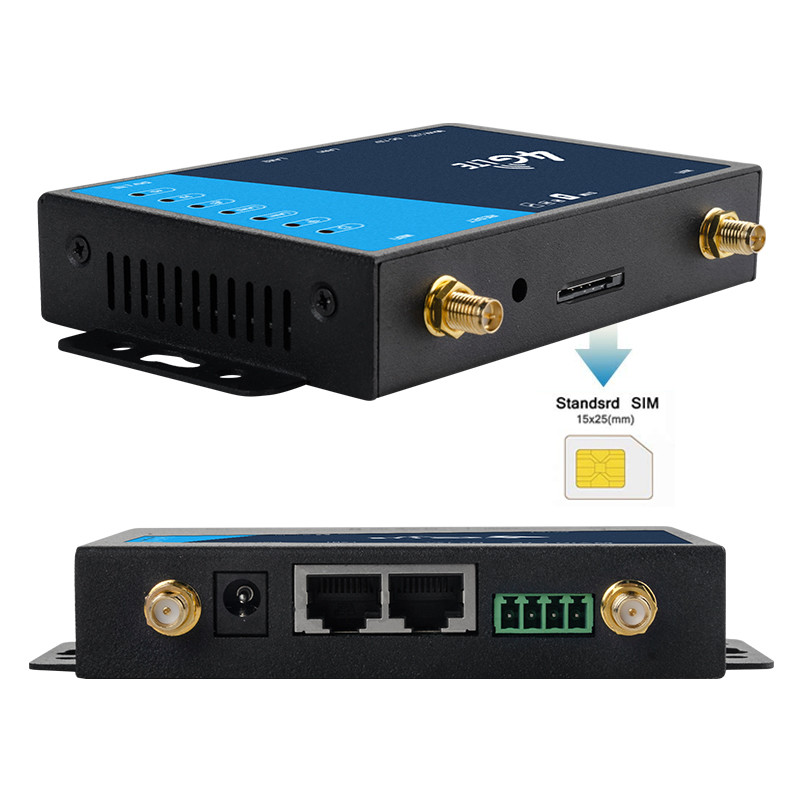

It's with built-in 2 antennas for receiving WIFI signals, 2 external antennas for receiving 4G signals

(support remove and change other outdoor 4G antenna) , Ethernet mode: dynamic / PPPOE / LAN



interface
Network
2* LAN
SIM
2FF SIM
Button
Reset
DC Adapter
Input voltage: 12V, 1A



Base
Routing & wifi chipset model
MT7628N
Routing & wifi processor info
IEEE 802.11 b/g/n
DDR/SPI
64MBytes/16MBytes
RF
Main antenna
Internal antenna
Receive diversity antenna
Internal antenna
WiFi band
2400MHz-2483.5MHz
MIMO for WiFi
2dbi X 2
Max. transmitter power for WiFi
802.11b 24dBm±2dBm;
802.11g 16dBm±2dBm;
802.11n 15dBm±2dBm;
Technical Standard
LED Indicator
Supported
WiFi standard
802.11b/g/n(2*2 11n features)
WiFi security
WPA/WPA2
OS
Windows XP,Windows Vista,Windows 7,Windows 10,MAC,Linux
Browser
IE (8.0 and later),Firefox (3.0 and later),Safari (4.0 and later),Opera (10.0 and later),Chrome (10.0 and later)





802.11b/G/N Cellular 4G LTE Industrial WiFi Router 300Mbps 0

Working band

LTE FDD: B1/2/B3/B4/B5/B7/B8/B28 (2100/1900/1800/1700/850/2600/900/700MHz);

TDD: B40;B66

HSPA+/HSUPA/HSDPA/WCDMA/UMTS2100/1900/900/850MHz;

EDGE/GPRS/GSM 1900/1800/900/850MHz.

802.11b/G/N Cellular 4G LTE Industrial WiFi Router 300Mbps 1802.11b/G/N Cellular 4G LTE Industrial WiFi Router 300Mbps 2
