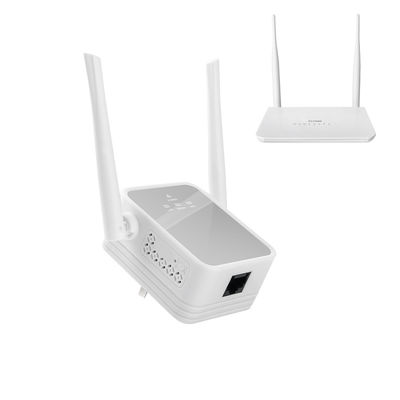

2.4GHz 5.8GHz 1200Mbps Signal Amplifier Wifi CPE Router Expander 12v Wifi Repeater Booster

Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Model Number TS1200W
Minimum Order Quantity 50
Price to be negotiated
Delivery Time to be negotiated
Payment Terms L/C, T/T, Western Union
Supply Ability 10000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 2.4GHz,5.8GHz Wi-Fi Transmission Standard 802.11n Wifi4
Type Wall-plug Interface LAN
LED (Power,SYS Reuse),SIGNAL Extend Speed 1200mbps
Memory 8MB Color White
High Light

5.8GHz Wifi Repeater Booster

,

1200Mbps Wifi Repeater Booster

,

CPE Router Wall Plug WiFi Extender

Product Description

2.4GHz 5.8GHz 1200Mbps signal amplifier wifi CPE router Expander 12v wifi repeater Booster With RJ45 Port

1. extending wifi signal to every corner of indoor

2. strong wall pnetration:dual external antennas make signal more stronger
3. external dual omnidirectional antenna,wide expansion:with omnidirectional gain antenna,the wirelss rate

peaks up to 1200Mbps,external dual antenna,rotable design,strong signal and wide coverage."

4. plug and use, help you extender the wifi signal, enjoy the wifi signal widely cover

5. Support user manual online system upgrade function

6.Wall-plug design, supports WPS pairing, and can also be easily set up with mobile phone. With memory function,

after a successful setting, no need to set again if changing anther charging socket.



Chipset
MT7628A+MT7612E
Main frequency and processing speed
580MHZ
Memory(Byte)
64M-Byte DDR2
FLASH(Byte)
8M- Byte (SPI flash)
Standards and protocols supported
IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP
Port
WAN/LAN
1*LAN(Hundred trillion)
Button
1*Reset
1*WPS
wireless
Frequency range / deviation
2.412GHz~2.4835GHz / 5.180GHz~5.825GHz

parameter
transmission 1200speed
802.11b : 1/2/5.5/11Mbps(Max)
802.11g : 6/9/12/18/24/36/48/54Mbps(Max)
802.11n (HT20): 150Mbps(Max)
802.11n (HT40): 300Mbps(Max)
802.11a: 6/9/12/18/24/36/48/54 Mbps(Max)
802.11AC (VHT80): 900Mbps(Max)
Transmitting power
EVM
2.4G:
802.11b:18dBm+/-1 dBm
802.11g:17dBm +/-1dBm EVM< -25 dBm
802.11n:17Bm +/-1dBm EVM< -28 dBm
5.8G:
802.11a:16dBm+/-1 dBm
802.11n:15dBm +/-1dBm EVM< -30 dBm
802.11ac:14Bm +/-1dBm EVM< -32 dBm
Spread spectrum technology
DSSS(Direct sequence spread)
Data modulation
DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM/256-QAM)
@PER
Sensitivity @ PER
(error rate)
11b 1Mbps: -95dBm@10%PER 11g 54Mbps: -75dBm@%10 PER 11n HT20 150Mbps: -72dBm@%10PER
11n HT40 300Mbps: -70dBm@%10 PER
11ac VHT80 866Mbps: -56dBm@%10 PER
power
≤5W
power supply
AC220V

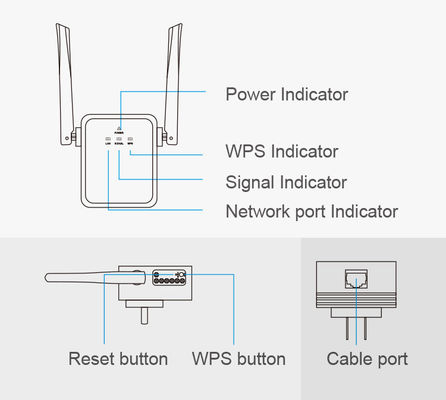

LED
PWR,LAN,Signal,WPS
Indication
LAN
Support
Boundary dimension
(L×W×H)(mm)
95x120x60mm
