N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W

  • N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W
  • N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W
  • N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W
  • N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W
  • N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W
Place of Origin CHINA
Brand Name TUOSHI
Certification CE ROHS FCC
Model Number TS818M
Minimum Order Quantity 15
Price contact seller
Delivery Time 5days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 698~960MHz/1710~2690MHz Impedance 50Ω
Polarization Vertical Connector N-MALE
Antenna VSWR ≤3.0 Antenna Gain 0/2dBi

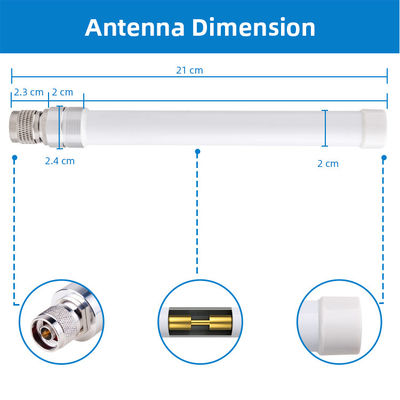

Antenna Dimensions 20×215mm Radome Material Fiberglass
Highlight

20W 3G 4G Lte Antenna

,

1710MHz 3G 4G Lte Antenna

,

N Male OMNI Directional Antenna
Product Description

698MHz-960MHz 1710MHz-2690MHz 20W N Male Outdoor OMNI directional Fiberglass GSM 3G 4G lte Antenna



Installation instruction:

1.Setting up the omni antenna is required to less than 1 wavelength from the tower or lightening rod. And the angle between the top of the antenna and the lightning rod is less than 45 degrees.

2.Antenna should face the side of the communication distance from the collagen(or the communication is difficult. The antenna and the feeder connection is required to be sealed with the waterproof tape.

3.If the communication distance requirement is far, should raise the antenna height and choose high gain antenna

Applications

-CDMA800/GSM900/3G/4G/LTE

-800 to 960/1710 to 2700MHz band

-Outdoor coverage system

Features

- High gain

- Low VSWR

- Small size

- Steel mounting kit

- Mast mountain

- No more direction adjustment: 360° complete signal reception omni directional





Frequency
698~960MHz/1710~2690MHz
Bandwidth
360°
Impedance 50Ω
VSWR ＜3.0
Polarization Vertical
Connector N-male
Environment Parameter:
Operation Temperature
-40°C-+85°C



N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W 0N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W 1N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W 2N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W 3N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W 4N Male OMNI Directional Fiberglass GSM 3G 4G Lte Antenna 1710MHz-2690MHz 20W 5
