1710MHz-2690MHz 4G GSM Antenna SMA N Male 2dBi OMNI Fiberglass
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency | 698~960MHz/1710~2690MHz | Impedance | 50Ω |
|---|---|---|---|
| Polarization | Vertical | Connector | N-MALE |
| Antenna VSWR | ≤3.0 | Antenna Gain | 0/2dBi |

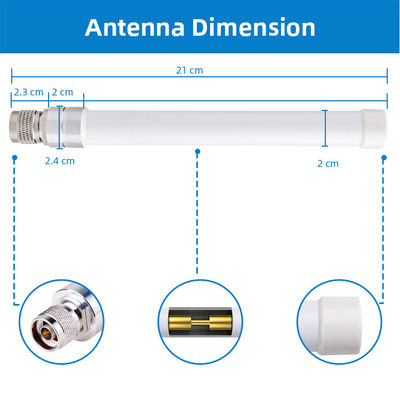

| Antenna Dimensions | 20×215mm | Radome Material | Fiberglass |
| Highlight | 2690MHz 4G GSM Antenna,20W 4G GSM Antenna,Fiberglass 3G 4G Lte Antenna |
||
Product Description
698MHz-960MHz 1710MHz-2690MHz 20W SMA N Male 2dBi outdoor OMNI directional Fiberglass GSM 3G 4G lte Antenna
Installation instruction:
1.Setting up the omni antenna is required to less than 1 wavelength from the tower or lightening rod. And the angle between the top of the antenna and the lightning rod is less than 45 degrees.
2.Antenna should face the side of the communication distance from the collagen(or the communication is difficult. The antenna and the feeder connection is required to be sealed with the waterproof tape.
3.If the communication distance requirement is far, should raise the antenna height and choose high gain antenna
Applications
-CDMA800/GSM900/3G/4G/LTE
-800 to 960/1710 to 2700MHz band
-Outdoor coverage system
Features
- High gain
- Low VSWR
- Small size

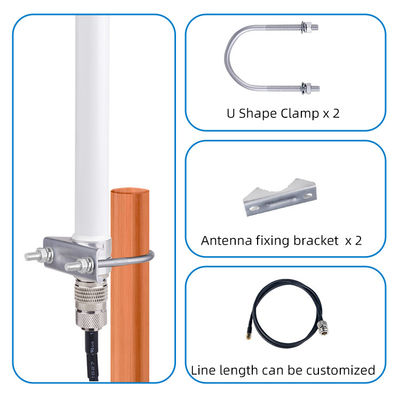

- Steel mounting kit
- Mast mountain
- No more direction adjustment: 360° complete signal reception omni directional
